Schonstedt Rex Multi-Frequency Pipe & Cable Locator - For All Utilities
Schonstedt Rex: Multi-Frequency Pipe and Cable Locator
Rex is Schonstedt's newest pipe and cable locator, recommended for locating and detecting all underground utilities: water and sewer, electric, telecom, and gas.
Compare Rex Models
Be sure to read our comparison article: Schonstedt Rex Multi-Frequency Pipe & Cable Locator - For All Utilities versus Rex with 3 Frequencies + GA-92XTd Magnetic Locator

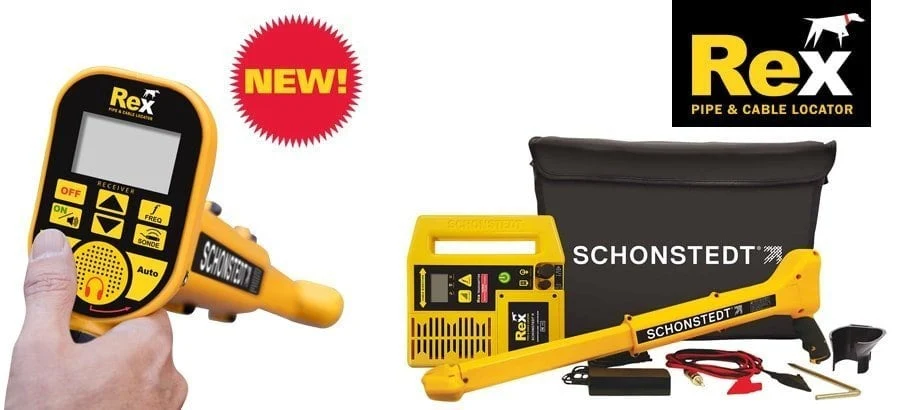

Schonstedt Rex: Full-Featured Utility Locator

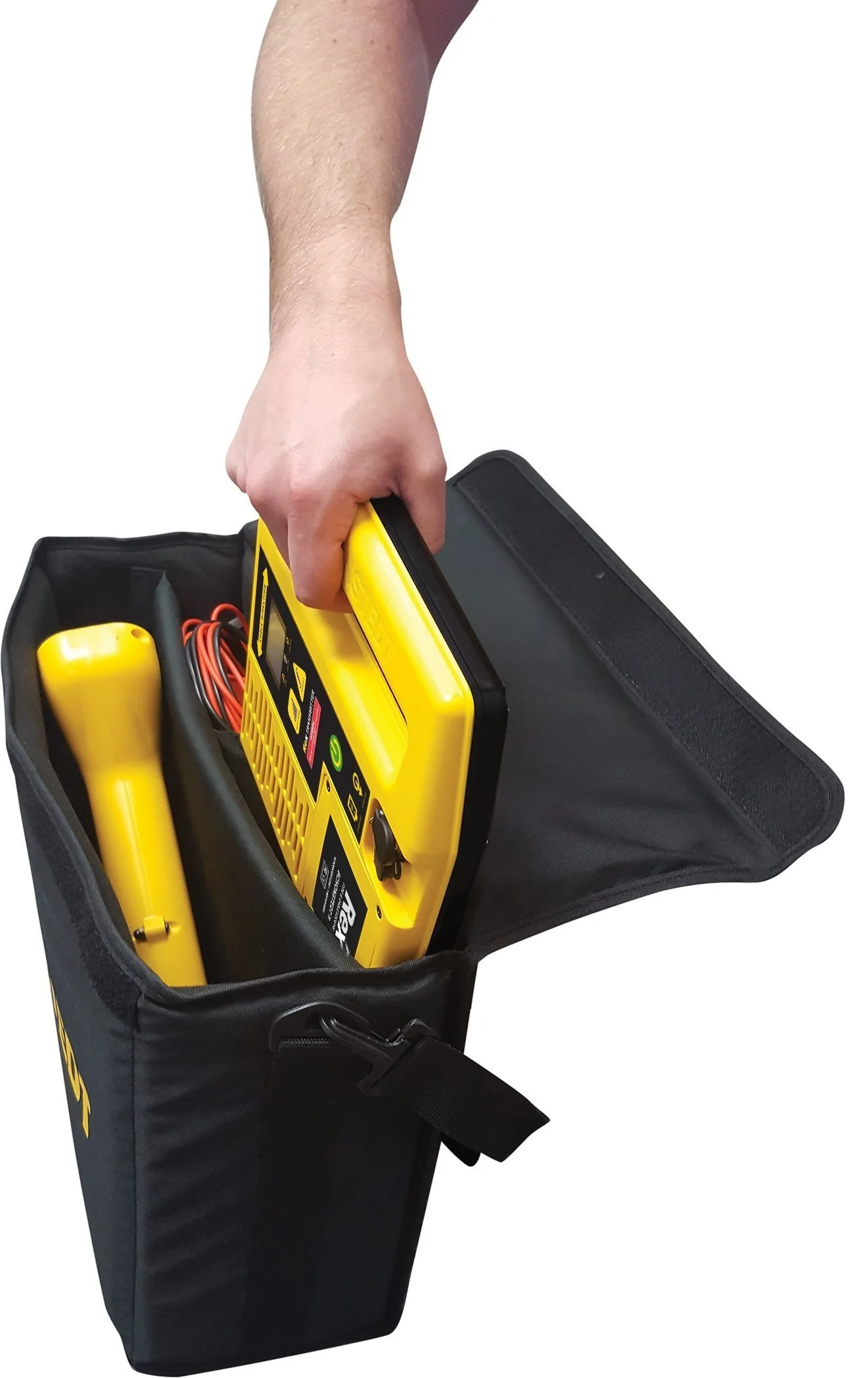

Rex is a multi-frequency locator priced comparably to single-frequency models. The transmitter is under 2" thick and weighs less than 4 lbs. The entire system weighs just over 7 lbs and fits into a custom shoulder bag.
Key Capabilities
- Multi-frequency for locating all utility types
- Greater sensitivity to deeply buried utilities
- Rechargeable 12V NiMH battery pack powers the transmitter
Produced by Schonstedt Instrument Company, a division of SPX Corporation, Rex can detect water, sewer, electric, telecom, and gas lines. Unlike single-frequency locators, Rex offers enhanced performance and flexibility with multiple frequencies.
Rex Lite Versions
Two Rex Lite models are available with limited frequencies:
- Rex Lite at 82 kHz and 512 Hz
- Rex Lite at 33 kHz and 512 Hz
Rex Lite models use 10 AA batteries for power. Whichever version you choose, you gain multi-frequency versatility.
Design and Portability

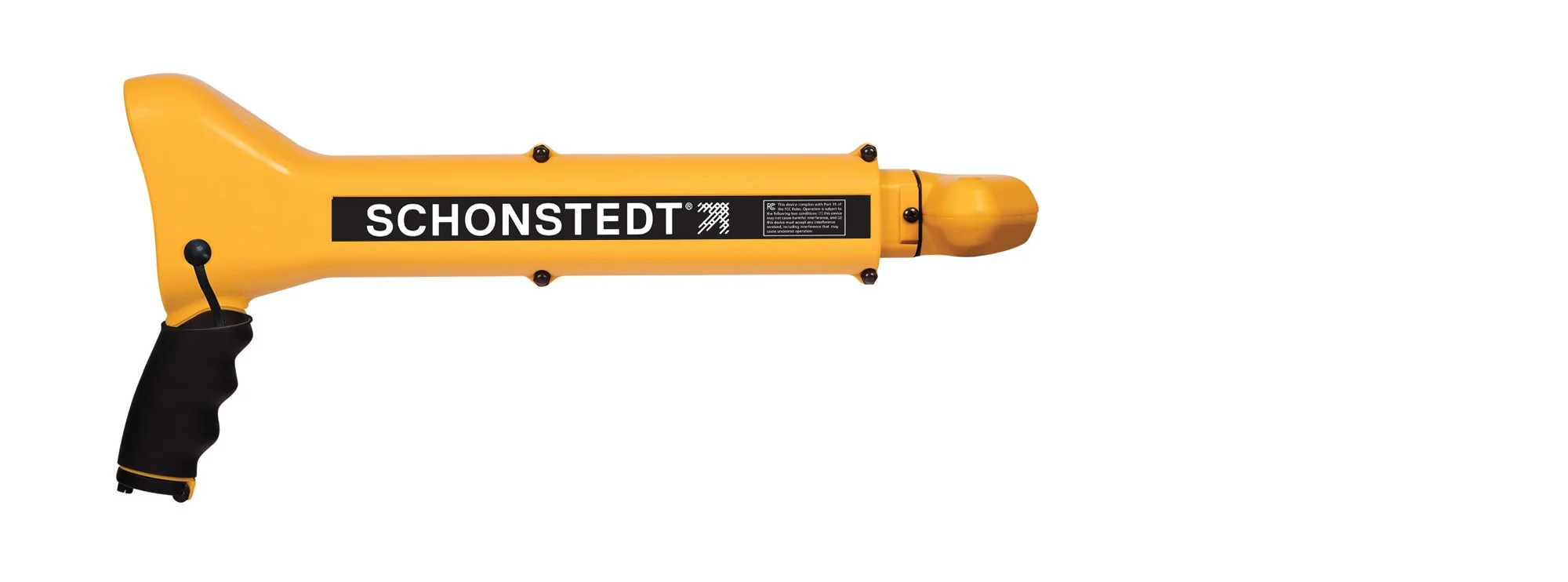

The Rex system is lightweight and compact, weighing under 7 lbs combined. The retractable receiver makes it easy to transport. The locator can detect to a depth of approximately 19 feet.
Power and Warranty
- Transmitter powered by 12V rechargeable NiMH battery
- Receiver powered by a single 9V battery
- Includes 3-year Schonstedt warranty
- Charges via internal smart charger and AC/DC power adapter
Performance Highlights
- Operates in multiple modes and frequencies
- Can be collapsed for easy carrying or expanded for full functionality
- Designed for locating virtually any type of underground utility
Manual details: Download the Schonstedt Rex Manual
