Schonstedt REX Multi-Frequency Pipe and Cable Locator with 3 Frequencies + GA-92XTd Magnetic Locator with Padded Carry Case

Schonstedt REX Multi-Frequency Pipe and Cable Locator with 3 Frequencies + GA-92XTd Magnetic Locator with Padded Carry Case

Schonstedt REX Multi-Frequency Pipe and Cable Locator with 3 Frequencies + GA-92XTd Magnetic Locator with Padded Carry Case. The MPC-Rex Combo Kit is truly the one kit that finds it all, designed for utility locating professionals in Water, Sewer, Gas, Electric, and Telecomm industries.

Product Features

Be sure to read our comparison article entitled Schonstedt Rex Multi-Frequency Pipe & Cable Locator - For All Utilities versus Schonstedt REX Multi-Frequency Pipe and Cable Locator with 3 Frequencies + GA-92XTd Magnetic Locator.

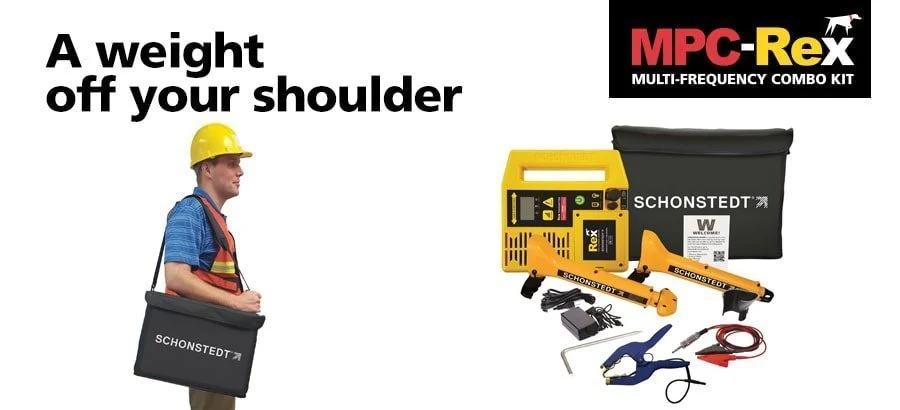

Schonstedt REX Multi-Frequency Pipe and Cable Locator with 3 Frequencies + GA-92XTd Magnetic Locator with Padded Carry Case. The Kit includes a GA-92XTd Magnetic Locator and a Rex Multi-Frequency Pipe & Cable Locator and accessories. The entire system fits easily into a custom shoulder bag.

MPC-Rex Combo Kit Includes:

• GA-92XTd Magnetic Locator
• Rex Multi-Frequency Pipe & Cable Locator
• Holster (p/n: PC10012)
• Conductive Clip Assembly (p/n: TM70000) which includes Standard Conductive Clips - C91010 (Red) and C91011 (Black)
• Soft Shoulder Bag (holds receiver, transmitter, accessories)
• Ground Stake (p/n: 208263)
• Power Supply & Cord for Transmitter charging

Schonstedt GA-92XTd Specifications

• Battery Indicator: 4-segment LCD
• Gain: 4-Level LCD - Low (L), Medium (M), High (H), Extra High (XH)
• Volume: 3 Levels: Muted, Medium, and Maximum
• Input Power: One 9V Battery
• Battery Life: 24 Hours (intermittent use)
• Operating Temp: -13 ° F to 140 ° F (-25 ° C to 60 ° C)
• Overall Length: Open - 26" (66 cm), Closed - 15.5" (39 cm)
• Nominal Sensor Spacing: 9.5" (24 cm)
• Weight: Approximately 2.4 lb (1.1 kg)
• Water and Dust Resistance: Rated IP54

Schonstedt Rex Receiver Specifications

• Operating Frequency: Active: 512 Hz, 33 kHz, and 82 kHz; Passive: 50 or 60 Hz; Sonde: 512 Hz
• Battery: One 9V battery
• Battery Life: 12 hours (intermittent use)
• Weight (incl. batteries): 2.8 lbs (1.25 kg)
• Operating Temp: -4 °F to 140 °F (-20 °C to 70 °C)
• Water and Dust Resistance: Rated IP54
• Dimensions: Closed: 17.5" (~44 cm), Extended: 27.7" (~70 cm)
• Max. Depth Capability: Approximately 19' (5.8 m); Sonde mode - approximately 5' - 15' (1.5 m to 4.2 m)

Schonstedt Rex Transmitter Specifications

• Operating Frequency: 82kHz, 33kHz & 512 Hz
• Operating Modes: Conductive, Inductive, and Inductive Clamp
• Max. Output Power (Conductive Mode @ 1000 Ω Load): 512 Hz - 1/2, 1, 2 or 5 W; 33 kHz - 1/2, 1, 2 or 5 W; 82 kHz - 1/2 or 1
• Battery Type: Rechargeable NiMH pack (12V)
• Battery Life: 8 Hours (intermittent use)
• Charging: Internal Smart Charger powered by AC/DC power adapter
• Dimensions: 10" x 10.25" x 1.75" (25.4 cm x 26 cm x 4.5 cm)
• Weight (including batteries): 3.5 lbs (1.6 kg)
• Operating Temp: -4 °F to 140 °F (-20 °C to 70 °C)
• Backlighting: White LED array
• Water and Dust Resistance: Rated IP54

Why Buy Your Schonstedt Industrial Detector From Us?

We are a factory authorized Schonstedt Distributor. We stock their entire range of products and accessories. Schonstedt products include industry-leading Pipe and Cable locators and Magnetic detection devices. We have product specialists on staff to support your needs. We work closely with Schonstedt to stay current with their latest products and technologies. Our product specialists will take the time to help you pick out the right Schonstedt model for your needs.

Manual details: Download the manual
